EBARA BEST 2–5
Heavy-duty stainless steel submersible pump with double mechanical seal for construction and drainage
2-year warranty as standard, excluding consumables
Specifications
- Models
- BEST 2 / 3 / 4 / 5
- Power
- 0.55 - 1.5 kW
- Flow Rate
- 1.2 - 21.6 m³/h
- Total Head
- 2.9 - 19 m
- Voltage
- 1~ 230 V / 3~ 400 V ±10%
- Float Switch
- Included on single-phase models
- Max Solids
- 10 mm
- Max Temp
- +35 °C
- Max Immersion
- 7 m
- Protection
- IP68
- Material
- AISI 304 SS
- Insulation
- Class F
- Seal
- Double (Carbon/Ceramic + SiC)
Available Sizes
| Model | kW / HP | Supply | Outlet | Max Flow | Max Head |
|---|---|---|---|---|---|
| BEST 2 | 0.55 / 0.75 | 1~ or 3~ | 1½" | 260 l/min | 13.1 m |
| BEST 3 | 0.75 / 1.0 | 1~ or 3~ | 1½" | 280 l/min | 14.6 m |
| BEST 4 | 1.1 / 1.5 | 1~ or 3~ | 1½" | 330 l/min | 18 m |
| BEST 5 | 1.5 / 2.0 | 3~ only | 1½" | 360 l/min | 19 m |
Description

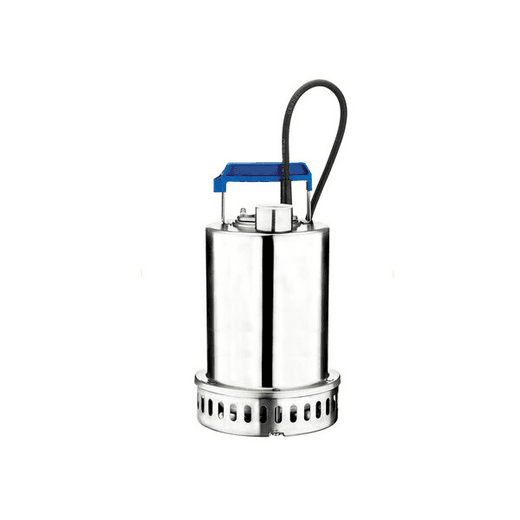

The EBARA BEST 2–5 is a submersible pump made entirely of AISI 304 stainless steel, inside and out, with two mechanical seals in an oil chamber: SiC/SiC on the pump side and carbon/ceramic on the motor side. Four models, the BEST 2, 3, 4 and 5 (0.55 to 1.5 kW), deliver up to 360 l/min (21.6 m³/h) and up to 19 m head from the BEST 5. A built-in strainer keeps out debris over 10 mm, and it is rated for immersion to 7 m. Designed for seepage water handling, basement and cellar emptying, and small to medium-sized construction site drainage: fix it in a sump, or carry it to wherever the water is. Single-phase models (BEST 2, 3 and 4) come with a float switch as standard, with overload protection and capacitor built in. The BEST 5 is three-phase only; three-phase models wire through a motor starter with overload protection.
