Accessories
Switches, gauges, couplings and fittings to finish the job
Everything that goes after the pump. We stock pressure and float switches, pressure gauges, brass 5-way connectors, stainless flexible couplings, and brass and polypropylene fittings from ½" to 2", matched to the pumps and vessels we supply. Order in-stock items before 12pm for next-day delivery, or collect from our trade counter in Ballymount, Dublin 12.
8 products found
N.J. PowerFlexible Couplings
Stainless steel braided flexible couplings with corrugated HDPE core — available from 1/2" to 2"
N.J. PowerFloat Switches
FSK-1 cable float switch for automatic pump control — single or dual function
N.J. PowerPressure Switch
Square D FSG 2 adjustable pressure switch — factory set 1.4 to 2.8 bar, adjustable 1.4 to 4.6 bar
N.J. PowerPressure Gauges
Pressure gauges with dual bar and psi scale - 0-6 bar and 0-10 bar
N.J. PowerBrass 5-Way Connector
Brass 5-way connector - joins the pump, vessel, pressure switch, gauge and outlet in one fitting
N.J. PowerBrass Fittings
High-quality brass fittings for water systems — available from 1/2" to 2"

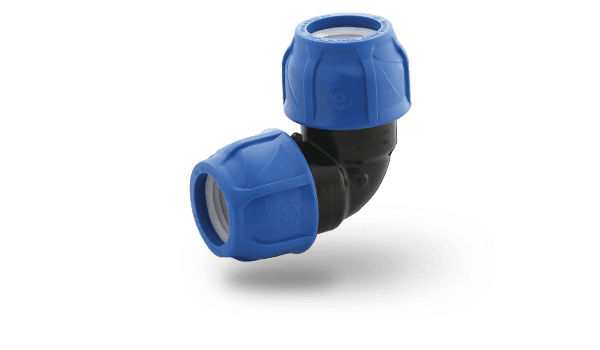

N.J. PowerBlue-Pipe Compression Fittings (Polypropylene)
Blue pipe polypropylene compression fittings — available from 19 mm to 63 mm
N.J. PowerThreaded Polypropylene Fittings
Threaded polypropylene fittings — impact resistant, available from 1/2" to 2"
What each part does
- Pressure switch: starts and stops the pump. It starts the pump when pressure drops to cut-in and stops it at cut-out. Factory set at 1.4–2.8 bar, adjustable on site from 1.4 to 4.6 bar.
- Float switch: runs a pump on water level. Fills a tank or empties a sump. Single or dual function, on H07RN-F cable with a counterweight to set the switching level. 220–240 V, 10 or 16 A, up to 55 °C.
- Pressure gauge: shows what the system is doing. Dual bar and psi scale, in 0–6 bar or 0–10 bar. Use it to check cut-in and cut-out when you set the switch.
- Brass 5-way connector: one fitting instead of five. A 1" body joins the pump, vessel, pressure switch, gauge and outlet, with ¼" ports for the switch and gauge. Fewer joints and a neater install.
- Stainless flexible couplings: reduce noise transfer. They reduce pump vibration travelling down the pipework. A corrugated HDPE core bends tight without kinking, inside an AISI 304 stainless braid with brass ends. ½" to 2", 10 bar, up to 70 °C (½" to 1¼") or 90 °C (1½" and 2"). Drinking-water approved and fitted by hand.
- Fittings: brass and polypropylene, ½" to 2". Brass fittings are EN 1982 brass and drinking-water safe, in ten types. Blue-pipe compression fittings run from 19 mm × ½" to 63 mm × 2", and threaded polypropylene fittings are impact resistant, from ½" to 2".
A typical pressure set-up: a pressure vessel, pressure switch and gauge on a brass 5-way connector at the pump outlet, with flexible couplings on the pump. Tell us the pump and we'll put the full set together.
Full specs: download the Pressure Vessels & Accessories brochure (opens in a new tab) (PDF).
Frequently asked questions
What accessories do I need to finish a pump installation?
We stock everything that goes after the pump:
- Pressure switch: starts and stops the pump. Factory set at 1.4–2.8 bar, adjustable from 1.4 to 4.6 bar.
- Float switch: switches a pump on water level, to fill a tank or empty a sump. Single or dual function.
- Pressure gauge: shows system pressure at a glance, in 0–6 or 0–10 bar.
- Brass 5-way connector: one fitting that joins the pump, vessel, pressure switch, gauge and outlet.
- Brass fittings: EN 1982 brass, drinking-water safe, ½" to 2".
- Polypropylene fittings: blue-pipe compression (19 mm × ½" to 63 mm × 2") and threaded (½" to 2").
See all accessories.
How do I set a pressure switch?
A pressure switch starts the pump when pressure drops to the cut-in point and stops it at the cut-out point. Ours is factory set at 1.4–2.8 bar, and both points can be adjusted on site between 1.4 and 4.6 bar. Always isolate the power before you open the cover. Fit a pressure gauge so you can watch cut-in and cut-out while you set it. If you change the cut-in pressure, reset the vessel's pre-charge to 0.2 bar below it: see how to check a pressure vessel's pre-charge.
Why fit flexible couplings on a pump?
Flexible couplings reduce pump vibration travelling down the pipework, so installations are quieter, and they protect joints from stress. Ours have a corrugated HDPE core that bends tight without kinking, an AISI 304 stainless braid and brass ends. They're drinking-water approved, fitted by hand without tools, rated to 10 bar, and come in sizes from ½" to 2". See flexible couplings.
Where should a pressure vessel be fitted?
Fit it close to the pump outlet, ideally on a brass 5-way connector, which joins the pump, vessel, pressure switch, gauge and outlet in one fitting. Add an isolating valve so the vessel can be serviced without draining the system. Our horizontal vessels (36–100L) have a pump stand built in, so the pump sits on top of the vessel.
How does a borehole pump system work?
The pump lifts water from the borehole into a pressure vessel, and a pressure switch turns the pump on and off. When you open a tap, water comes from the vessel first. When the pressure drops to the cut-in point, the switch starts the pump. When it reaches the cut-out point, the pump stops. Our pressure switch is factory set at 1.4–2.8 bar and can be adjusted on site between 1.4 and 4.6 bar.
Can a drainage or sewage pump run automatically?
Yes. Many of our pumps come with a float switch as standard, so they start as the water rises and stop when it drops. Single-phase versions of the EBARA BEST 2–5, RIGHT and DW, and the Stairs XD and XV, are supplied with a float switch. The Optima, Best One and X1-03 come in cable, vertical or ball float versions, with the same performance as the non-float models. Use a vertical float in a tight sump, and a cable float where there's room for it to swing. Three-phase pumps need a separate float switch and a motor starter with overload protection.
More questions? See all pump FAQs.
Need help choosing? Call +353 1 456 4099 or get a quote. Our products come with a 2-year warranty as standard, and trade accounts are available for plumbers and contractors.
