Flexible Couplings

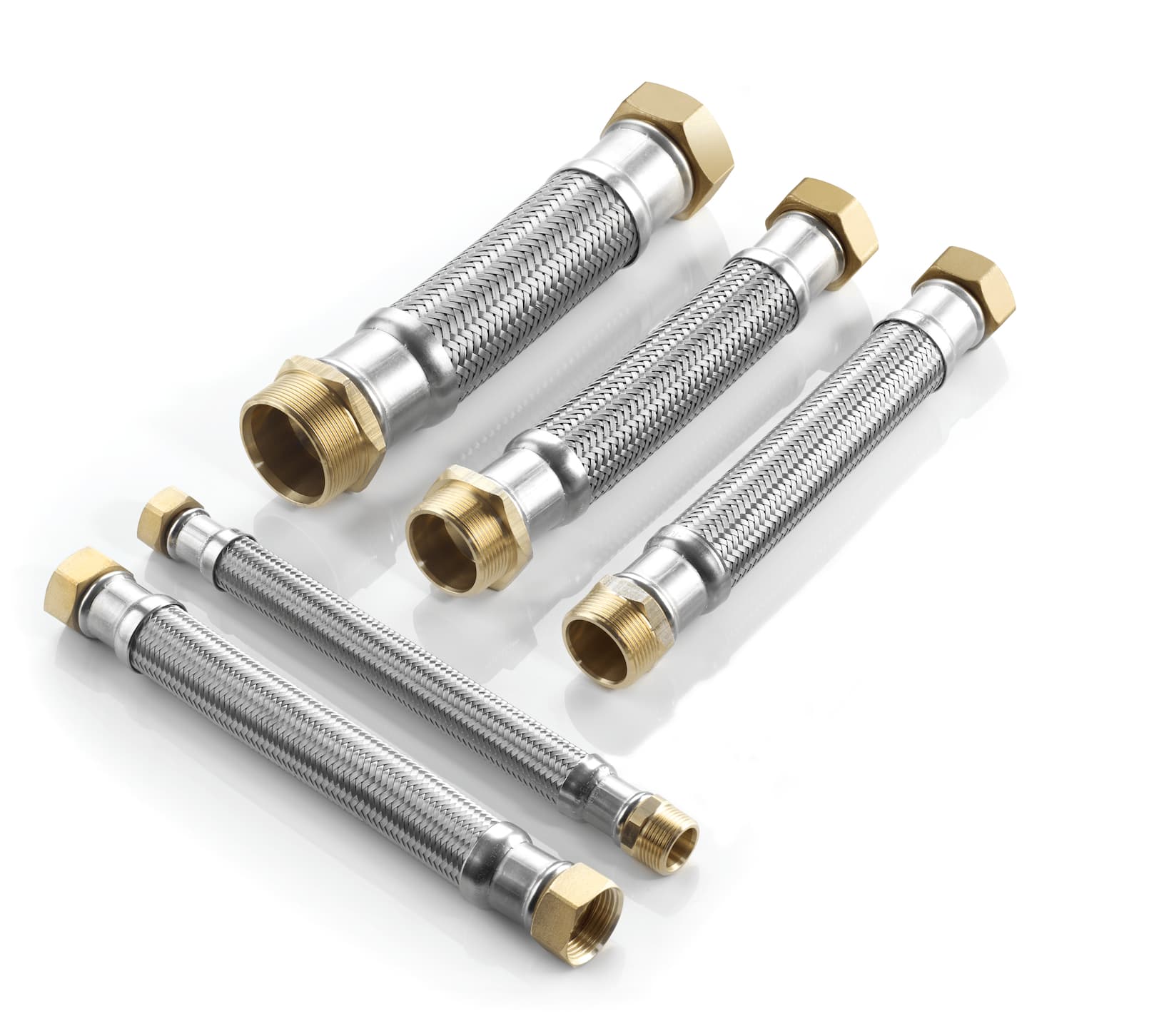

Stainless steel braided flexible couplings with corrugated HDPE core — available from 1/2" to 2"
2-year warranty as standard, excluding consumables
Documentation
Specifications
- Inner Core
- Corrugated HDPE
- Reinforcement
- AISI 304 Stainless Steel
- Fittings
- Brass Nipple (MF)
- Sleeve
- AISI 304 Stainless Steel
- Potable Water
- Yes
- Sizes
- 1/2" through 2"
Available Sizes
| Size | Inner (mm) | Outer (mm) | Min Bend Radius (mm) | Pressure | Max Temp |
|---|---|---|---|---|---|
| 1/2" | 16 | 22 | — | 10 bar | 70 °C |
| 3/4" | 19 | 25 | 35 | 10 bar | 70 °C |
| 1" | 26 | 32 | 45 | 10 bar | 70 °C |
| 1" 1/4 | 32.5 | 40 | 60 | 10 bar | 70 °C |
| 1" 1/2 | 36 | 44 | 70 | 10 bar | 90 °C |
| 2" | 48 | 55 | 100 | 10 bar | 90 °C |
Description
Stainless steel flexible couplings with a corrugated HDPE core, AISI 304 stainless braid and sleeves, and brass ends. They stop pump vibration travelling down the pipework, so installations are quieter, and protect joints from stress. The corrugated core bends tight without kinking or collapsing, keeping a constant flow. Drinking-water approved and fitted by hand, with no tools. Rated to 10 bar, and to 70 °C (½" to 1¼") or 90 °C (1½" and 2"). Ideal for pump installations where vibration isolation and flexible connections are required.
