Featured

EBARA Hydrostation

All-in-one variable speed booster with IE5 motor and Bluetooth app control - only 43 dBA, supplied with a 3L pressure vessel

Suitable for:Domestic

2-year warranty as standard, excluding consumables

Documentation

NJP Brochure

Brochures

EBARA Brochure

Brochures

Product Manual

Manuals

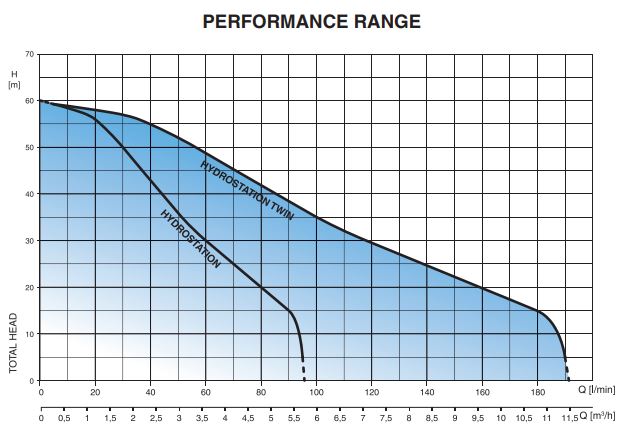

Performance Curves

Specifications

Power: 0.8 kW / 1.1 HP
Max Flow: 95 l/min
Head Range: 5 - 60 m
Max Output Pressure: 6 bar
Test Pressure: 10 bar
Voltage: 220–240 V ±15%
Max Current: 4.6 A
Pressure Vessel: 3L (supplied)
Motor Class: IE5
Noise Level: 43 dBA
Protection: IP65
Max Suction: 6 m
Connections: 1"
Temp Range: +5 °C to +45 °C
Ambient Temp: +5 °C to +50 °C

Description

The EBARA Hydrostation is an all-in-one variable speed pressurisation system combining horizontal multistage pumps, a high-efficiency IE5 permanent magnet motor, integrated inverter, non-return valve, self-priming device and maintenance-free anti-water hammer expansion device. Pressure rises and falls with demand, so every tap and shower stays steady, and the IE5 motor matches energy use to demand. It delivers up to 95 l/min and 60 m head from a 0.8 kW (1.1 HP) motor, with a maximum output of 6 bar (10 bar is the test pressure). It's supplied with a 3L pressure vessel to prevent frequent cycling. With noise levels of only 43 dBA, it's well suited to homes, and Bluetooth settings through the Hydrostation app make setup simple. Self-priming, with a suction depth of up to 6 m. Can be expanded with a plug-and-play manifold kit to connect up to 2 units. Feed from a break tank. Never connect directly to the mains.
