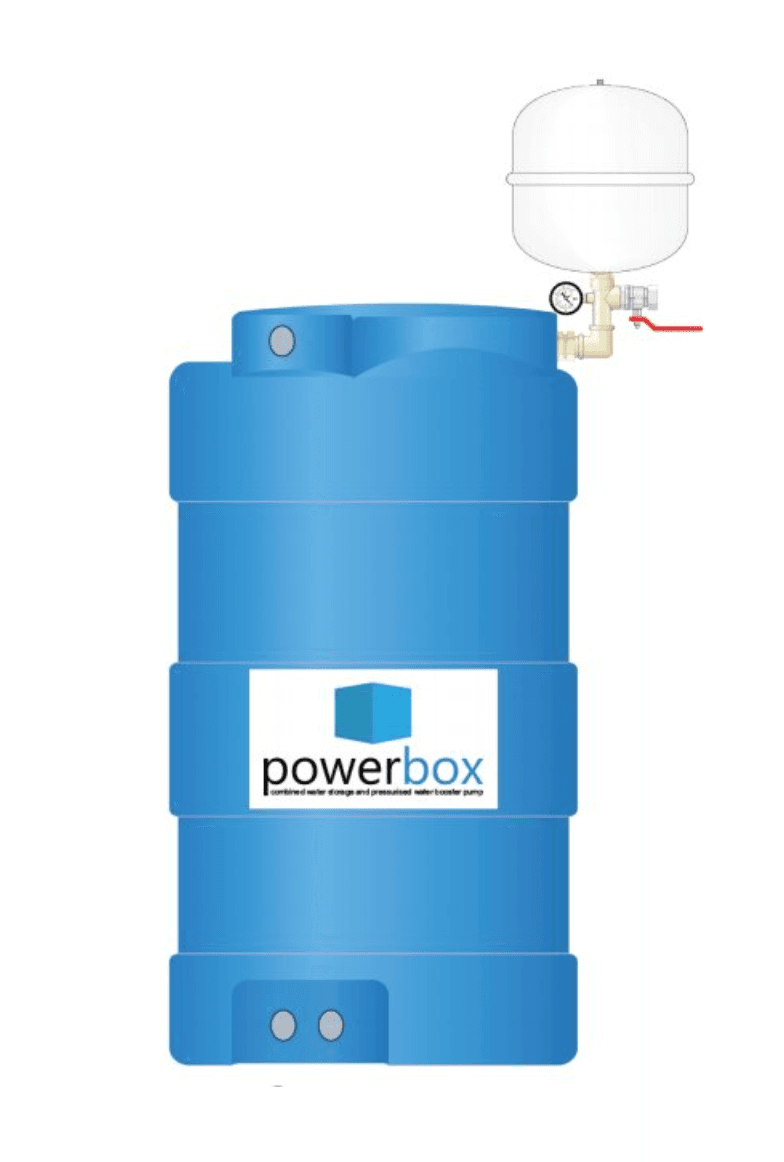

FeaturedPowerBox Standard
Standard packaged pressure booster - 300L or 500L tank with Divertron pump and built-in control
2-year warranty as standard, excluding consumables
Documentation
Specifications
- Tank
- 300L or 500L
- Pump
- Divertron 650
- Control
- Built into the pump
- Pressure Vessel
- Fitted externally
- Power
- 0.42 kW / 0.56 HP
- Voltage
- 230 V
- Current
- 2.9 A
- Fuse
- 6 A

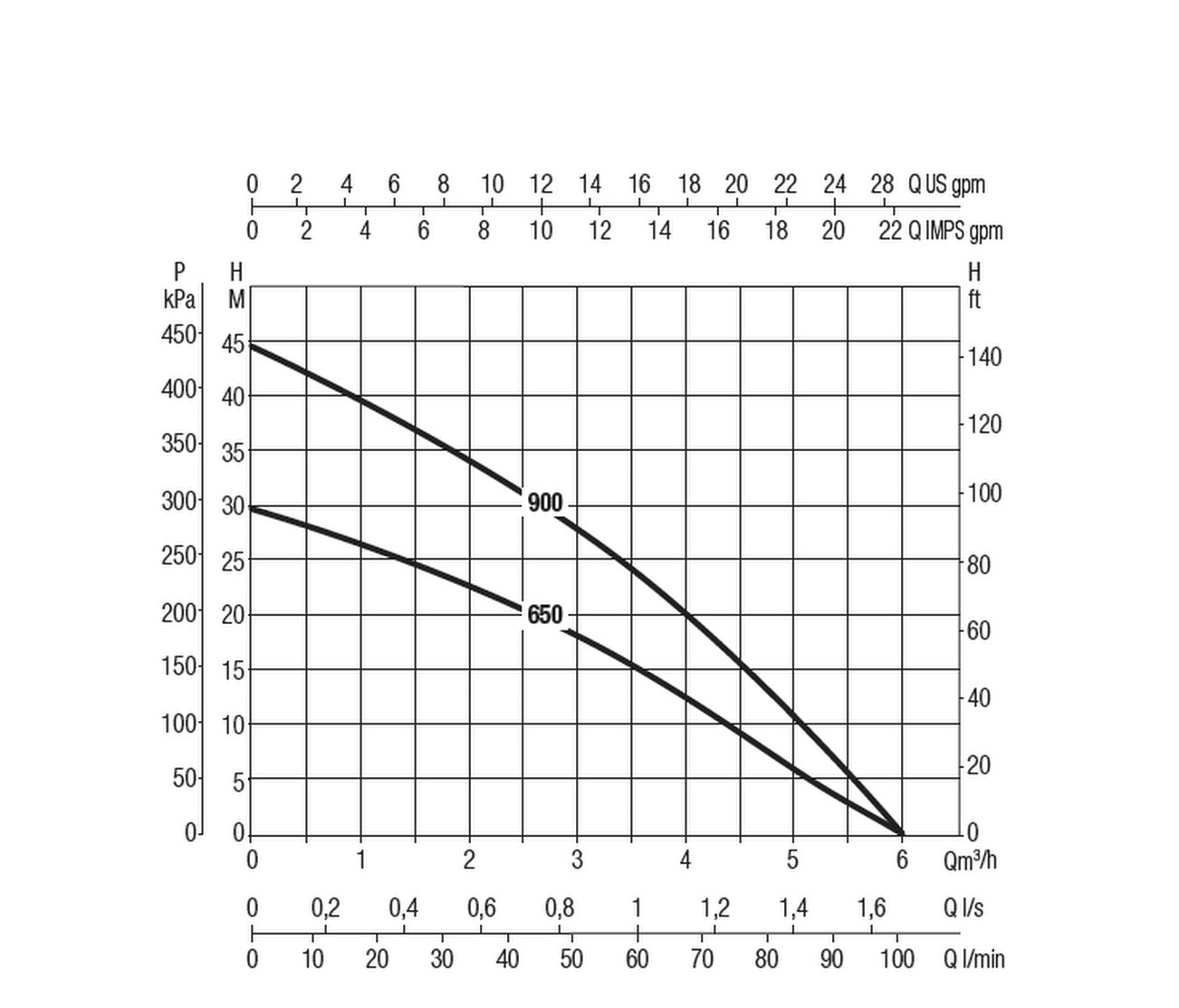

- Max Flow
- 100 l/min
- Max Head
- 30 m
- Max Pressure
- 3 bar
- Dimensions (Ø × H)
- 630 × 1170 mm (300L) / 700 × 1460 mm (500L)
- Vessel Air Charge
- 1.5 - 1.8 bar
Description
The PowerBox Standard is a complete storage and pressure package for homes and light commercial buildings with low or unreliable mains pressure. A 300L or 500L tank, submersible pump, controls and acoustic pad come pre-plumbed. The tank fills from the incoming mains and the pump delivers the stored water to every tap and shower at up to 3 bar and 100 l/min. On the Standard, the control is built into the Divertron 650 pump and the pressure vessel is fitted externally, for an all-in-one setup. The pump sits underwater on an acoustic pad, so it runs quietly and never needs priming, and it starts and stops on demand with dry-run protection. Pumps and controllers are also sold separately, for replacement or for retrofitting an existing tank.
You May Also Need
PowerboxPowerBox Eco
Economy packaged pressure booster - 300L or 500L tank with Divertek pump and external controller
PowerboxPowerBox Variable
Variable speed packaged pressure booster - 300L or 500L tank with an external VFD controller

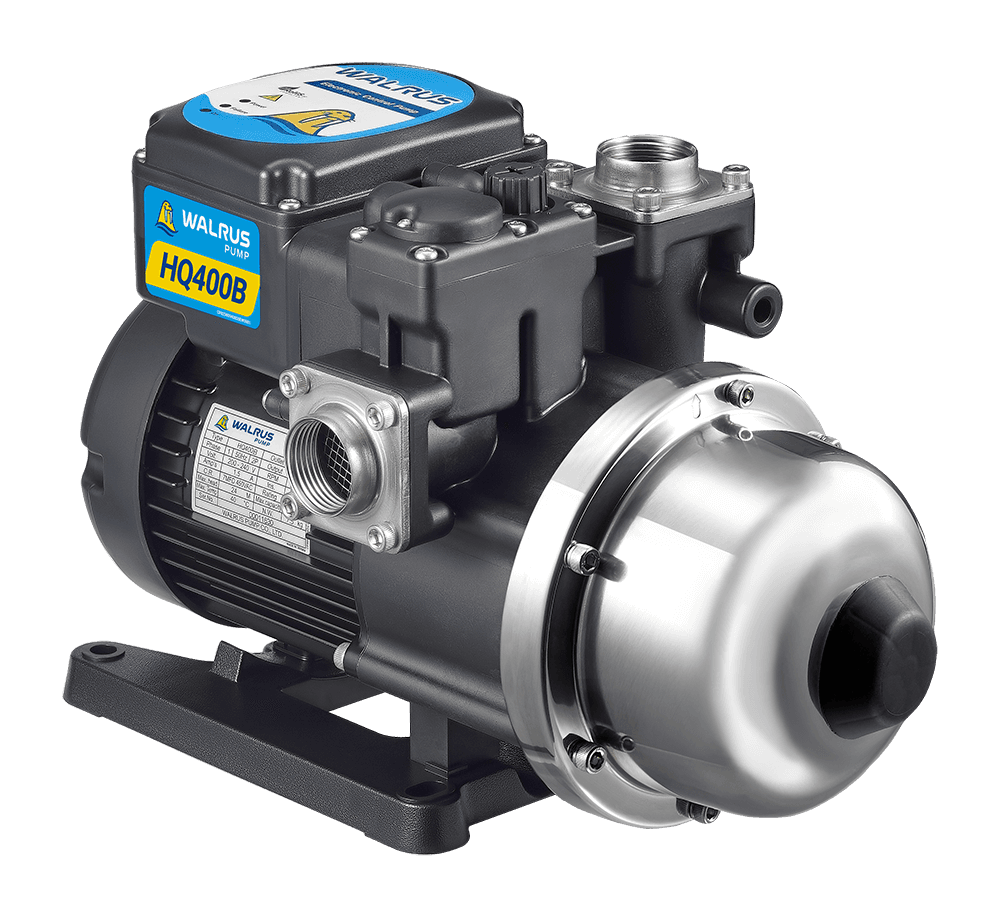

WalrusWalrus HQ400B
