Stairs Stairs X1-03 Submersible Drainage

Stairs X1-03

Compact stainless steel submersible pump with top discharge — ideal for domestic drainage and flood-prone areas

Suitable for:Domestic

2-year warranty as standard, excluding consumables

Specifications

Power
0.25 kW / 0.33 HP
Voltage
1~ 230 V
Material
Stainless Steel
Max Temp
+50 °C
Discharge
1¼"
Flow Rate
Up to 160 l/min (9.6 m³/h)
Max Solids
10 mm
Protection
IP68
Total Head
Up to 9 m
Max Immersion
5 m

Description

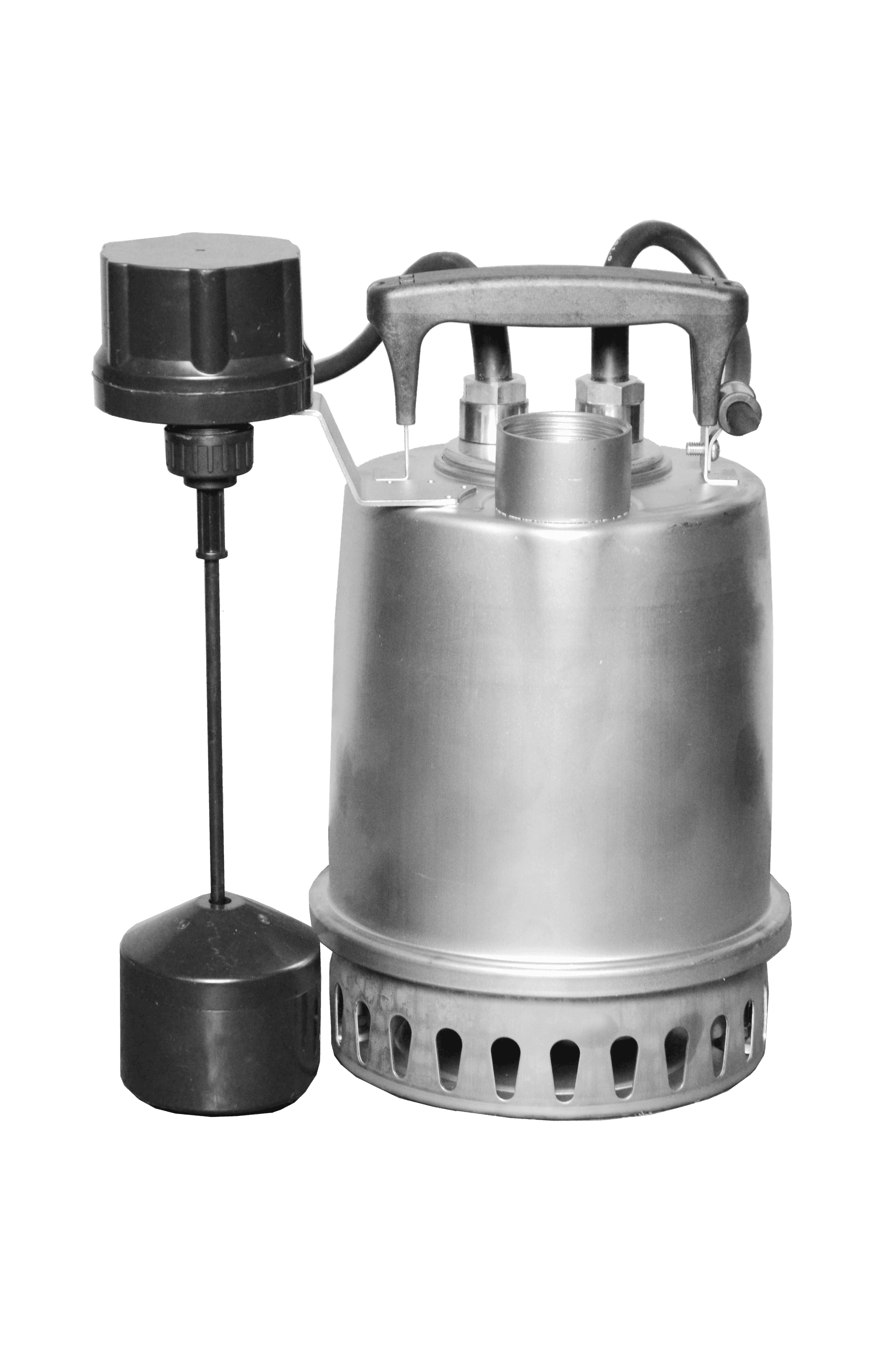

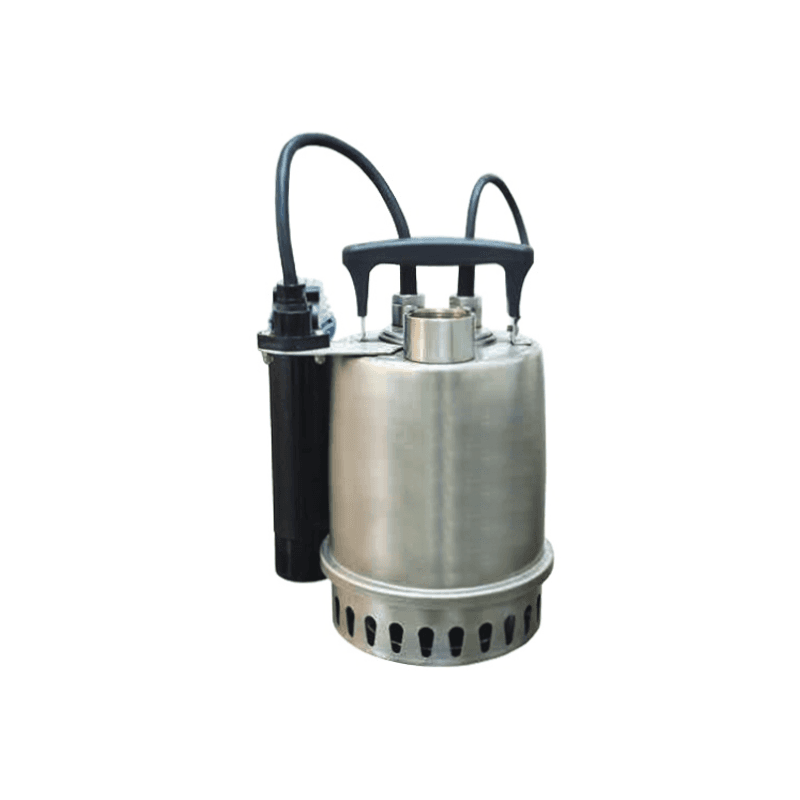

The Stairs X1-03 is a compact stainless steel submersible drainage pump designed for domestic grey water and light wastewater drainage. Features a top discharge outlet making it ideal for installation in small manholes and areas subject to flooding. Available with three float switch options — cable float (MA), fixed float (MS), and ball float (ML) — for flexible automated operation. IP68 rated and suitable for liquids up to +50 °C.
