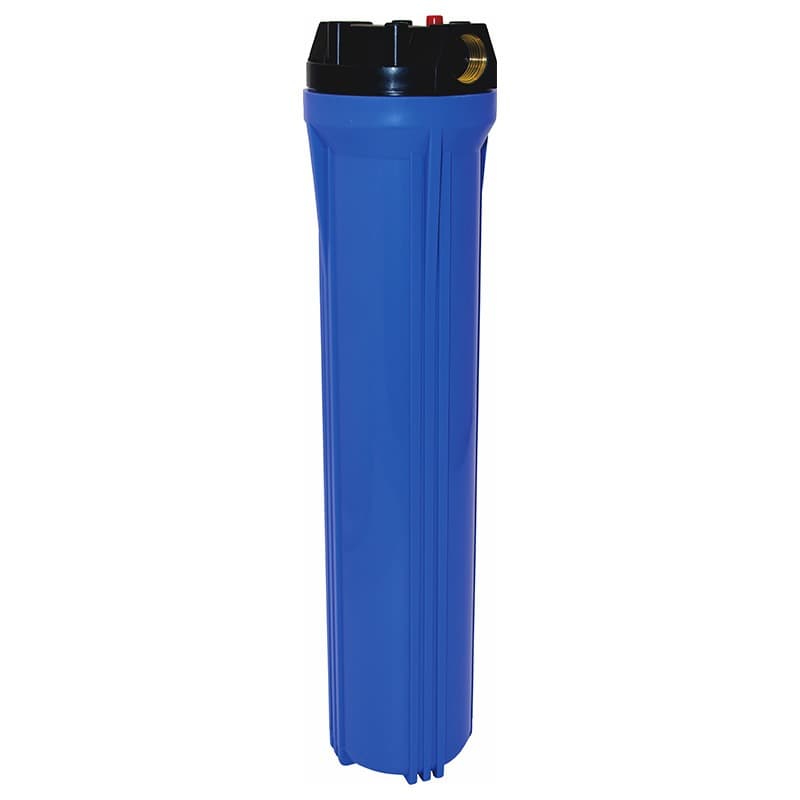

20" Standard Water Filter Housing
Single-stage 20" water filter housing with 1" brass ports and 58 l/min flow — double the cartridge length in a slimline body
2-year warranty as standard, excluding consumables
Documentation
Specifications
- Model
- NJP
- Size
- 20"
- Stages
- 1
- Cartridge Size
- 2.5" × 20"
- Port Size
- 1" Brass
- Flow Rate
- 58 l/min (unrestricted)
- Application
- Domestic, Commercial
- Max Pressure
- 7 bar at 20 °C
- Max Temp
- 40 °C
- Housing
- Blue, Clear
- Seal
- Single O-Ring
- Cap
- Black with Pressure Relief
Compatible Cartridges
Description
The NJP 20" Standard Water Filter Housing takes the same slim 2.5" diameter cartridge as the 10" Standard but at twice the length, doubling filtration capacity without moving to the wider jumbo format. That is the deciding factor in most installations: where there is vertical space in the plant cupboard but not the clearance or budget for a jumbo bowl, the 20" standard gives longer service intervals while keeping the cheaper, more widely stocked slimline cartridge. Ports are 1" brass and unrestricted flow is 58 l/min, matching the jumbo housings, so it is not a compromise on throughput. Bowls are available in blue or clear, with the same single O-ring seal and pressure relief cap as the rest of the range. A common choice for domestic properties with above-average demand and for light commercial supply. Seal threads with PTFE tape only, never paste or hemp, and press the relief button to release the pressure before opening the bowl.
