Walrus WQ200B
Water-cooled ultra-quiet electronic control pump for apartments and townhouses - supports up to 2 taps (formerly WQ200)
2-year warranty as standard, excluding consumables
Documentation
Specifications
- Inlet
- 1"
- Power
- 0.18 kW
- Outlet
- 1"
- Weight
- 8.9 kg
- Current
- 1.5 A
- Max Flow
- 58 l/min
- Max Head
- 24 m
- Voltage
- 200–240 V
- Activation
- 1.6 kg/cm²
- Dimensions
- 378 × 160 × 165 mm
Description
The Walrus WQ200B (formerly sold as the WQ200) is a water-cooled electronic control pump for residential water pressure boosting. Its fanless, water-cooled motor removes the main source of pump noise, making it one of the quietest units in the range and well suited to installations near living space. SUS304 stainless steel centrifugal impellers resist corrosion and give long service life, and the wetted parts carry an SGS-certified Ag+ silver ion antibacterial treatment. The dual outlet design allows either horizontal or vertical discharge, so the unit fits tight plant cupboards and awkward pipe runs without extra fittings. Pump, motor, pressure tank and electronic controller are combined in one housing, with thermal overload protection, double dry-running protection and a six-second delay that prevents rapid cycling.
You May Also Need
N.J. PowerFlexible Couplings
Stainless steel braided flexible couplings with corrugated HDPE core — available from 1/2" to 2"
VaremVarem ExtraVarem
Drinking-water pressure vessel with potable-grade membrane — available from 2L to 1000L

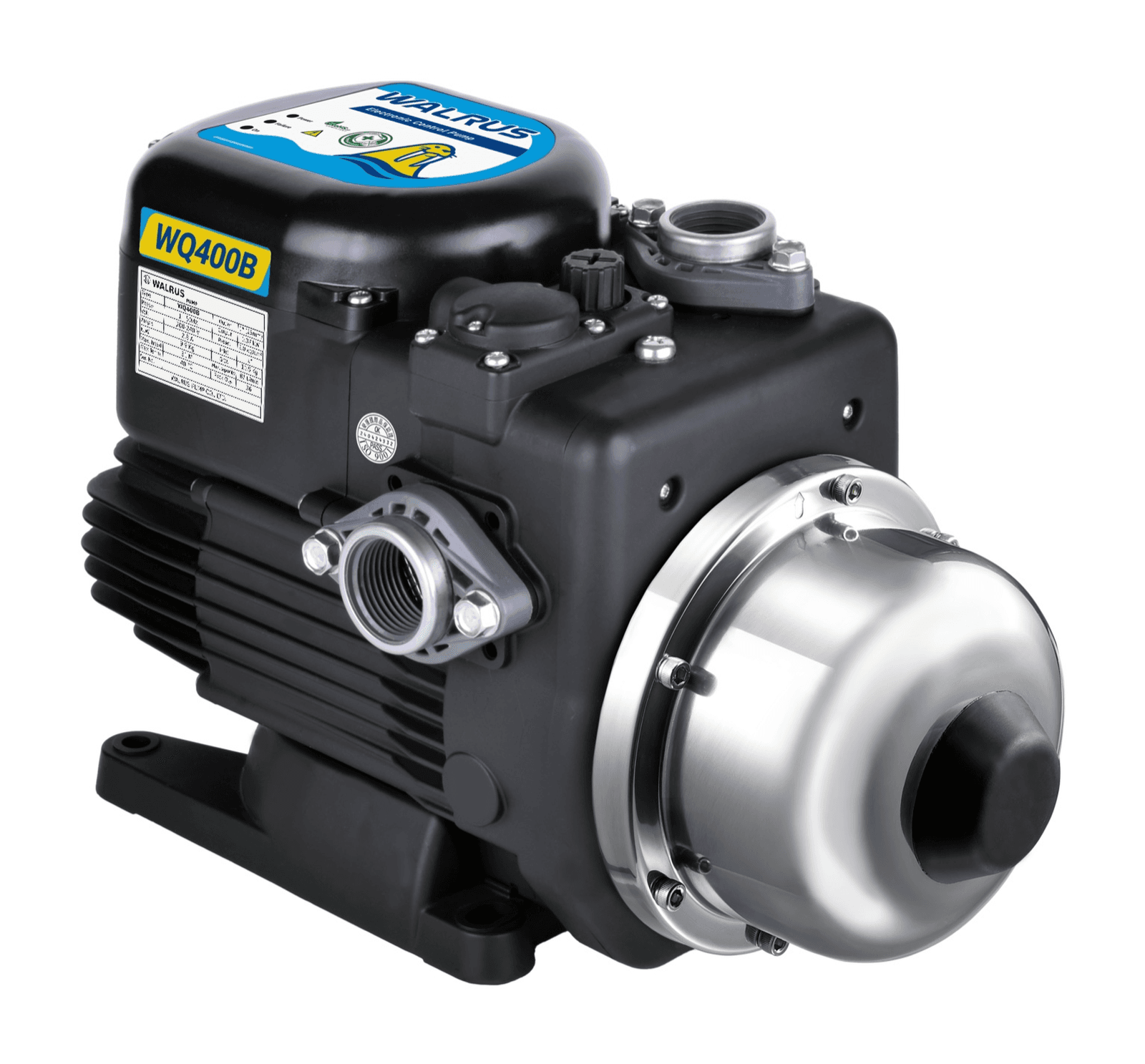

WalrusWalrus WQ400B
