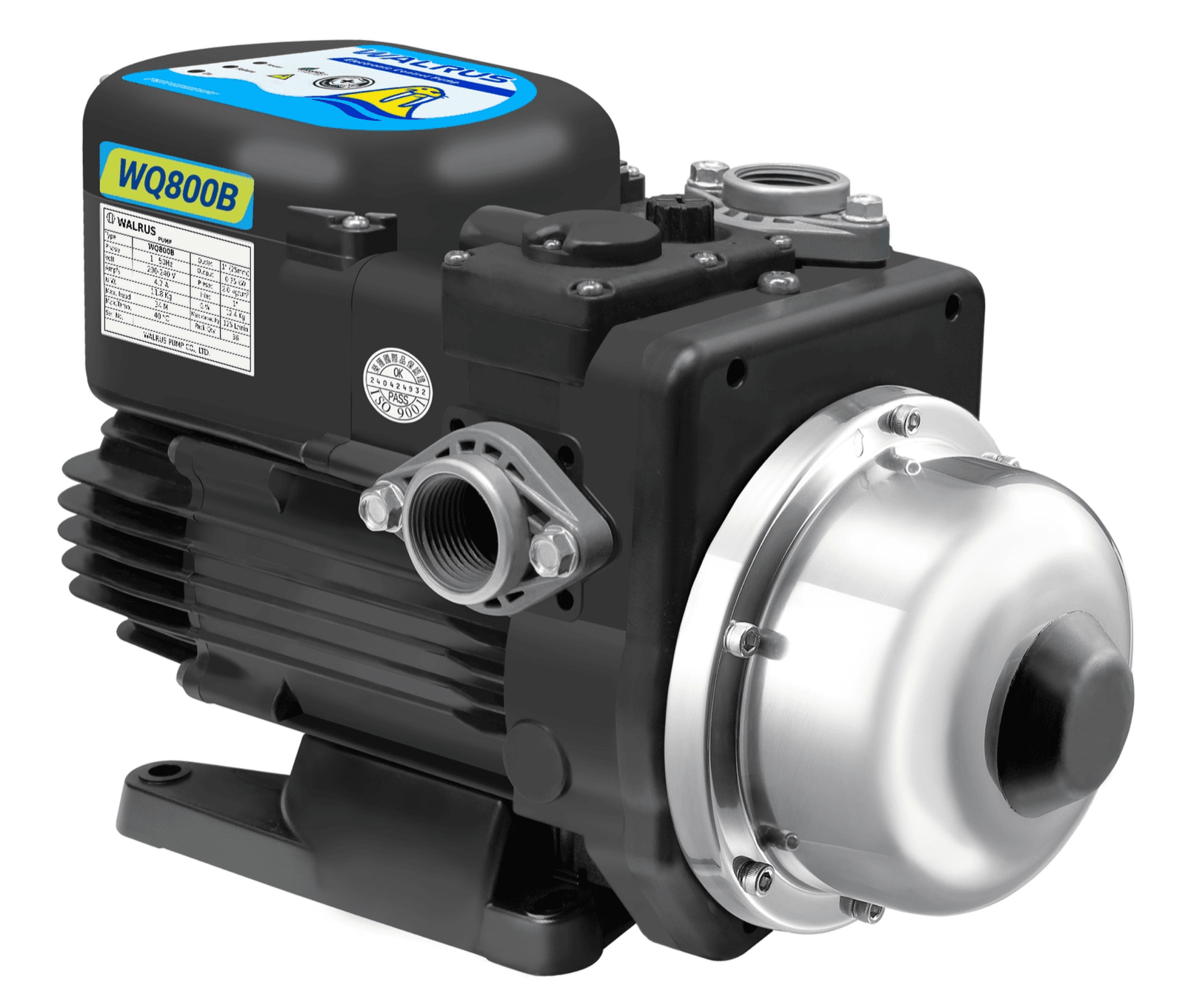

Walrus WQ800B
Water-cooled high-performance electronic control pump for large homes - supports up to 4 taps (formerly WQ800)
2-year warranty as standard, excluding consumables
Documentation
Specifications
- Inlet
- 1"
- Power
- 0.75 kW
- Outlet
- 1"
- Weight
- 11.8 kg
- Current
- 4.7 A
- Max Flow
- 125 l/min
- Max Head
- 34 m
- Voltage
- 200–240 V
- Activation
- 2.0 kg/cm²
- Dimensions
- 404 × 167 × 172 mm
Description
The Walrus WQ800B (formerly sold as the WQ800) is the largest of the water-cooled WQ range, built for large homes with several bathrooms drawing water at the same time. It delivers the highest flow in the series and will hold pressure across up to four outlets running together. The fanless water-cooled motor keeps noise down and dissipates heat better than a conventional fan-cooled unit, while SUS304 stainless steel centrifugal impellers give durability under sustained load. Wetted parts carry an SGS-certified Ag+ silver ion antibacterial treatment. Dual outlet design allows horizontal or vertical discharge. Pump, motor, pressure tank and electronic controller come as one unit, with thermal overload protection, double dry-running protection and a six-second anti-rapid-cycling delay.
